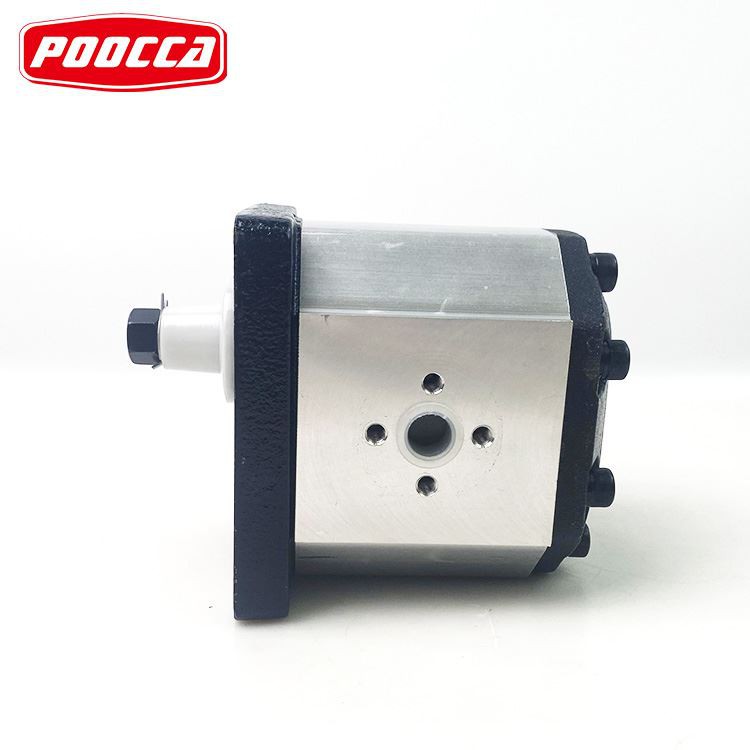

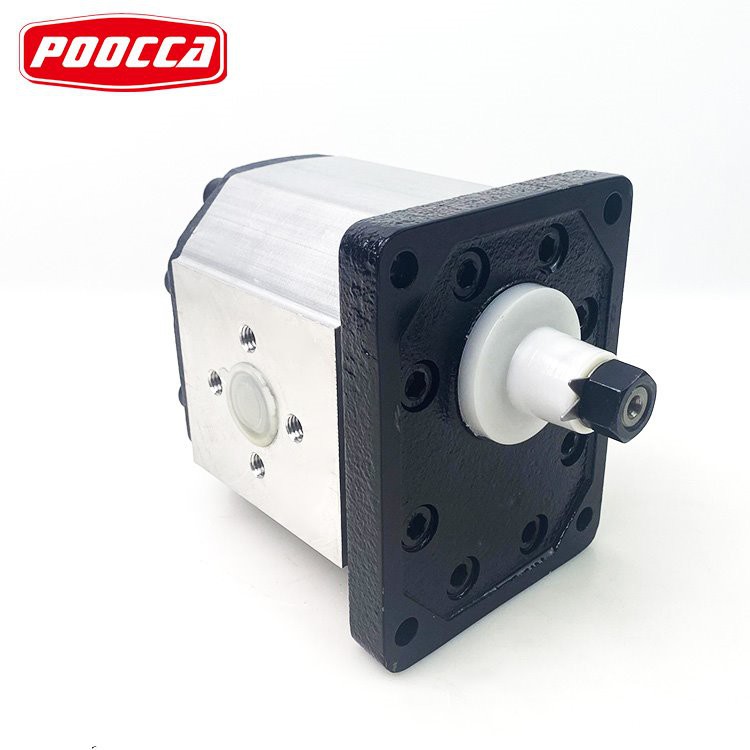

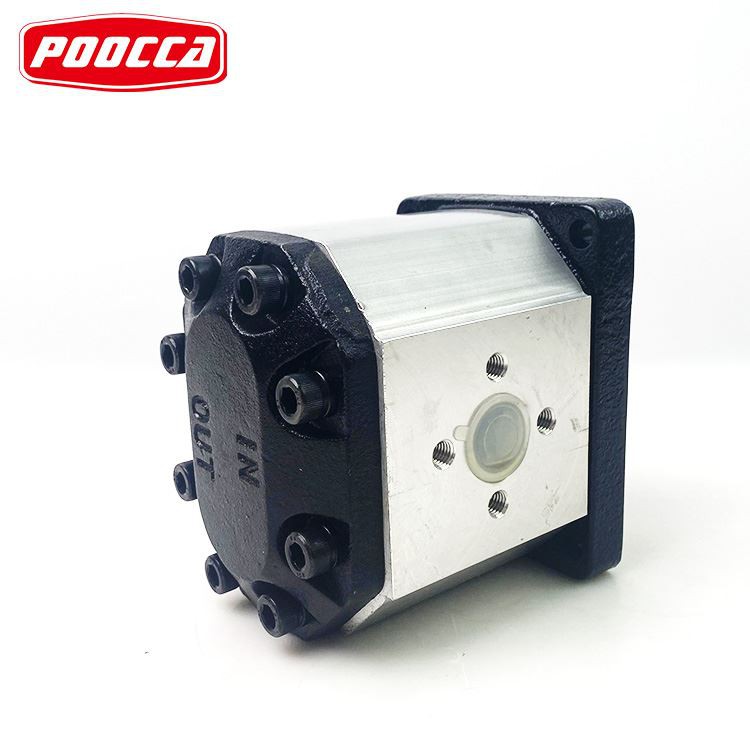

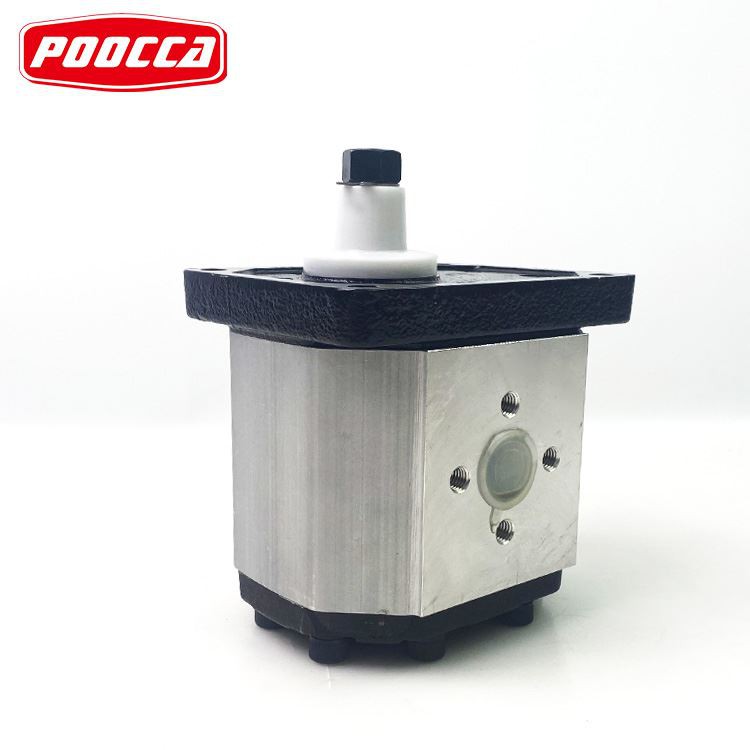

Hydraulic Gear Pump GHP3

Marzocchi High Pressure Gear Pump GHP3





Production Introduction



POOCCA GHP3 high-performance aluminum body single pumps with a cast iron flange and cover. This pump series is useable in heavy-duty systems. Available in single rotation and reversible.



Name	Marzocchi GHP3 Series Hydraulic gear pump
Series	Series 3
Sizes	20 22 26 33 39 44 52 61 71 78 87cc/rev
Nominal Pressure	250 bar
Maximum Pressure	280 bar
Operation Mode	External Gear Pumps



Product Introduction





TYPE	Displacement	FLOW at 1500r/ min	MAX PRESSURE			MAX SPEED
			P1	P2	P3
GHP3-D(S)-30	20	29	280	295	310	3500
GHP3-D(S)-33	22	31	280	295	310	3500
GHP3-D(S)-40	26	37	280	295	310	3000
GHP3-D(S)-50	33	48	270	285	300	3000
GHP3-D(S)-60	39	56	260	275	290	3000
GHP3-D(S)-66	44	62	250	265	280	2800
GHP3-D(S)-80	52	74	230	245	260	2400
GHP3-D(S)-94	61	87	210	225	240	2800
GHP3-D(S)-110	71	101	200	215	230	2500
GHP3-D(S)-120	78	112	180	215	210	2300
GHP3-D(S)-135	87	124	160	175	190	2000
GHP3A-D(S)-30	20	29	280	295	310	3500
GHP3A-D(S)-33	22	31	280	295	310	3500
GHP3A-D(S)-40	26	37	280	295	310	3000
GHP3A-D(S)-50	33	48	270	285	300	3000
GHP3A-D(S)-60	39	56	260	275	290	3000
GHP3A-D(S)-66	44	62	250	265	280	2800
GHP3A-D(S)-80	52	74	230	245	260	2400
GHP3A-D(S)-94	61	87	210	225	240	2800
GHP3A-D(S)-110	71	101	200	215	230	2500
GHP3A-D(S)-120	78	112	180	215	210	2300
GHP3A-D(S)-135	87	124	160	175	190	2000





Marzocchi GHP dimensions

Poocca hydraulic manufacturer provides dimensional drawings of Marzocchi hydraulic external gear pump GHP. The following only shows the dimensional drawings of some models. For more model parameters, dimensions, and other specific information, contact poocca immediately and we will provide you with a quotation as soon as possible. , parameter diagrams, etc. to help you successfully purchase the hydraulic products you want.



Detial Image

GHP3 models include: GHP3,GHP3-MU,GHP3A,GHP3A-MU,GHP3A2,GHP3BK1,GHP35

POOCCA PA-GHP series gear pump has the characteristics of high working pressure, high speed, high volumetric efficiency and low noise. The pump body is made of special pressure-resistant aluminum alloy die-casting, and the flange and end cover are made of special cast iron materials.

GHP3A high pressure gear pump provides SAE standard flange connection surface, taper shaft and G thread port are also available.



GHP3 Order code





Application Equipment

Used in test machinery; hydraulic cutting machinery; shoe-making machinery and machine tool industry; power in construction machinery industry; lubrication and cooling systems; automobile lifting plates; small power stations, etc.

FAQ

Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer specializing in the production of hydraulic gear pumps, hydraulic motors, hydraulic piston pumps, and hydraulic vane pumps. We trade our products directly with customers.



Q: Can you do OEM and ODM?

A: Yes, both OEM and ODM are acceptable. Material, color and style can be customized, and we will inform the basic quantity after consultation.



Q: Can we use our own logo?

A: Yes, we can print your private logo according to your requirements.



Q: How many packages do you have?

A: Wooden box or carton packaging



Q: Can you make our own packaging?

A: Yes, you only need to provide the packaging design, and we will produce the products you want. We also have professional designers who can help you with packaging design.





Know More

MARZOCCHI high pressure gear pump GHP series:

GHP1A-D-3-FG, GHP1A-D-4-FG, GHP1A-D-5-FG,

GHP1A-D-7-FG, GHP1A-D-9-FG, GHP2A-D-13-FG,

GHP2A-D-25-FG, GHP*A-D-*-FG, GHP2-D-20-FG,

GHP1A-D-5-C1-FG, GHP1-D-2-TO-E-FG, GHP1A-D-3-FG

GHP1A-D-4-FG, GHP1A-D-5-FG, GHP1A-D-6-FG,

GHP1A-D-9-FG, GHP2A-D-6-FG, GHP2A-D-9-FG, GHP2A-D-10-FG.

POOCCA replaces Italian Marzocchi high-pressure gear pump

The hydraulic gear pump has the characteristics of high working pressure, high speed, low noise, etc., and is suitable for providing pressure oil for various hydraulic systems.

There are many series of gear pumps in Italy Mazuchi, and the use of different series of gear pumps is also different.

Italy Marzocchi MARZOCCHI gear pump GHP series Marzocchi Marzocchi

High-pressure gear pump features: the highest pressure can reach 31Mpa, with high pressure, stable pressure, low noise, fast delivery cycle, high cost performance and other advantages. With its superior quality, it is widely used in testing machinery, hydraulic cutting machinery, shoemaking machinery and other industries.

There are six different series of Marzocchi gear pumps in Italy:

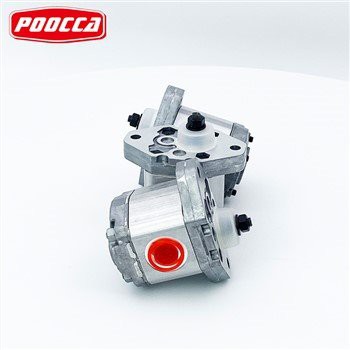

GEAR MICRO PUMP: displacement from 0.25ML/REV-0.5ML/REV, continuous working pressure can reach 190BAR;

GEAR PUMP(1P) series: All-aluminum alloy high-pressure gear pump with displacement from 1.1CC/REV-8CC/REV; continuous working pressure can reach 230BAR; forward and reverse rotation can be realized, and a double pump can be formed;

ALP aluminum alloy series: the displacement range is relatively wide (1.4CC/REV-200CC/REV), the selection of shaft and flange can have different standards: European standard/German standard/American standard, of which there are four series: ALP1 -ALP4, etc., continuous working pressure can reach 250BAR; GHP series gear pump: aluminum alloy pump body, cast iron flange and end cover, displacement from (1.4CC/REV-87CC/REV), also divided into four series, Continuous working pressure can reach 280BAR;

ALM series motors: ALM series all-aluminum alloy motors can be divided into three series, the displacement range is from (2.8CC/REV-87CC/REV), and the continuous working pressure is 220BAR, 220BAR, 240BAR;

GHM series motor: aluminum alloy aluminum shell, cast iron flange and back cover, displacement from (1.4CC/REV-87CC/REV), pressure can reach higher, continuous working pressure can reach 250BAR ALP and GHP can be composed Multi-connected gear pumps have favorable prices and short delivery times. Some products can be provided in stock.

Italian Mazucchi gear pump description

Oil pump series

Models such as: GHP-1A, 1AQ, 1A2, 2A, 2A3, 2BK, 2BK2, 3A, 3A2, 3BK2, 1A, 2, 2A, 2BK1, 2BK7, 3, 3A, 4, A0.25-0.5, P0.25 -0.5, ALPA1, ALPI1, ALPP1, GHPA1, GHPI1, 1PKA, K1PG, KL1PG, 1BK4, 1BK7, 1PBW, 1PVM DI, 1PR,

Applicable to: machine tool industry; power of construction machinery industry; lubrication and cooling system; automobile lifting plate; small power station

Motor series

Models such as: ALM-1, 1A, 2, 2A, 2BK1, 2BK4, 2BK7, 3, 1A, 1AQ, 2, 2A, 2A3, 2BK1, 2BK2, 2BK4, 2BK7, 3, 3A, 3A2

Suitable for; fan system; air compressor

ALP series gear pump

ALP1-D-2 gear pump GHP1A-D-2-FG gear pump

ALP1-D-3 gear pump GHP1A-D-3-FG gear pump

ALP1-D-4 gear pump GHP1A-D-4-FG gear pump

ALP1-D-5 Gear Pump GHP1A-D-5-FG Gear Pump

ALP1-D-6 Gear Pump GHP1A-D-6-FG Gear Pump

ALP1-D-7 gear pump GHP1A-D-7-FG gear pump

ALP1-D-9 gear pump GHP1A-D-8-FG gear pump

ALP1-D-11 Gear Pump GHP2A-D-6-FG Gear Pump

ALP1-D-13 gear pump GHP2A-D-9-FG gear pump

ALP1-D-16 gear pump GHP2A-D-10-FG gear pump

ALP1-D-20 gear pump GHP2A-D-13-FG gear pump

ALP2-D-6 Gear Pump GHP2A-D-16-FG Gear Pump

ALP2-D-9 gear pump GHP2A-D-20-FG gear pump

ALP2-D-10 gear pump GHP2A-D-22-FG gear pump

ALP2-D-13 gear pump GHP2A-D-25-FG gear pump

ALP2-D-16 gear pump GHP2A-D-30-FG gear pump
