Rexroth Type 2FRM 2-Way Flow Control Valve 2FR​​​​​​​M10 2FRM16

Rexroth Type 2FRM 2-way Flow Control Valve 2FRM10 2FRM16





▶ 2FRM hydraulic valve for subplate mounting
▶ Port distribution in accordance with DIN 24340 G and ISO 6263
▶ Mechanical actuation
▶ Optional pressure compensator stroke limitation
▶ 2FRM bidirectional control valve reduces start-up jump
▶ Bidirectional flow control via rectifier sandwich plate
▶ Corrosion-resistant design





For applications outside these values, please consult us!

General
Size			NG10	NG16
Weight	▶ Type 2FRM ▶ Rectifier sandwich plate	kg	5.6	11.3
		kg	3.0	8.1
Installation position			any
Ambient temperature	range	°C	–30 ... +80 (NBR seals) –20 … +80 (FKM seals)



hydraulic – 2-way flow control valve type 2FRM

Size		NG10				NG16
Maximum flow	l/min	10	16	25	50	60	100	160
Maximum operating pressure (port A)	bar	315
Pressure differential with free return flow B to A, qV dependent	bar	2	2.5	3.5	6	2.8	4.3	7.3
Minimum pressure differential	bar	3 … 7				5 … 12
Flow control ▶ Temperature stability (–20 … +80 °C) ▶ Pressure stability (up to Δp = 315 bar)		±2% (qV max)				±2% (qV max)
		±2% (qV max)				< ±5% (qV max)
Hydraulic fluid		see table page 6
Hydraulic fluid temperature range	°C	–30 ... +80 (NBR seals) –20 … +80 (FKM seals)
Viscosity range	mm2/s	10 … 800
Maximum admissible degree of contamination of the hydraulic fluid, cleanliness class according to ISO 4406 (c)		Class 20/18/15 1)



hydraulic – rectifier sandwich plate type Z4S

Maximum flow	l/min	50	160
Maximum operating pressure	bar	315
Cracking pressure	bar	1.5









2-way flow control valve

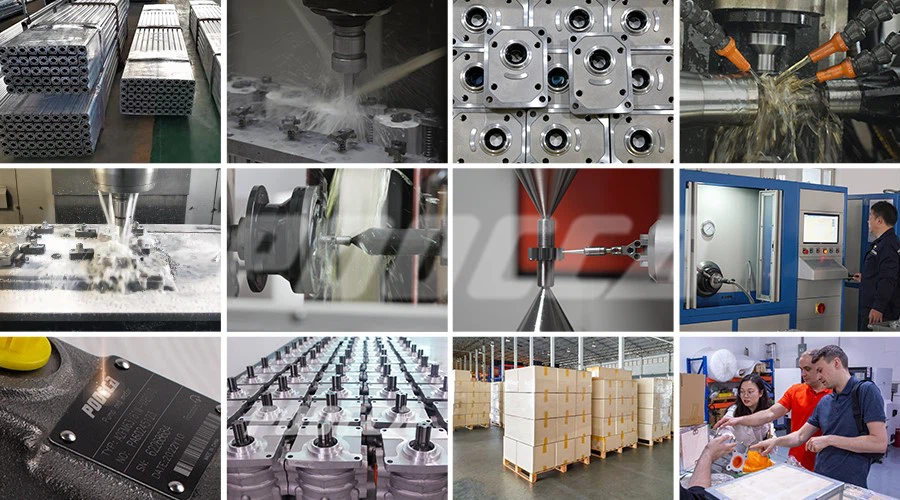

Poocca Hydraulic Manufacturers is a hydraulic strength factory enterprise integrating R&D, design, production, sales and maintenance.
Mainly engaged in gear pump, piston pump, vane pump, motor, hydraulic valve, hydraulic cylinders and parts, suitable for forklifts, excavators, dump trucks, power plant equipment, steel plants and other equipment industries. As a leading hydraulic supplier, We provide ODM and OEM hydraulic solutions. Providing hydraulic system products suitable for each customer's needs.
Providing high-quality, affordable hydraulic pumps to save energy, speed up and save costs for your machinery is the goal of poocca suppliers. We have more than 20 years of experience in the hydraulic industry. All our products are tested multiple times before leaving the factory, with a pass rate of up to 99.9%, and we strictly comply with industry standards such as CE, ROHS, and ISO.
Poocca manufacturer has more than 1600 types of hydraulic products. Here you will easily find the model you need. We have cooperation with Indonesia, Russia, Mexico and other countries to achieve mutual win-win. We look forward to cooperating with you.

















Poocca Hydraulic offers customizable packaging and nameplate designs to meet your specific needs. Enhance your brand image and demonstrate professionalism with our personalized solutions. We have everything you need. Enhance your hydraulic equipment presentation with custom packaging and branding solutions from PooccaHydraulic.





POOCCA's custom products are crafted to your specifications, ensuring precision, reliability and performance. From unique designs to professional functionality, we provide solutions to meet your specific requirements.







Q: How many years of hydraulic experience do you have?
A: Poocca Hydraulic Manufacturer has 20+ years of hydraulic experience and has cooperative relations with 100+ countries, including Mexico, Kuwait, Russia, Saudi Arabia, Indonesia and many other countries.



Q: What products do you mainly produce?
A: We mainly deal in hydraulic piston pumps, gear pumps, vane pumps, motors, hydraulic valves, hydraulic steering gears, hydraulic systems and other products. Please feel free to contact us.



Q: Do you have a factory?
A: We have factories in Guangdong, Zhejiang and Suzhou. You are welcome to visit us.



Q: How long is the warranty period of your products?
A: We provide a 12-month warranty, and replacement or repair services can be provided for quality problems that occur during the warranty period.



Q: What quality standards and certifications do your products meet?
A: Our products have passed multiple quality certifications, such as ISO9001, CE, etc., to ensure compliance with international standards and stable and reliable quality.



Q: How long is the production cycle?
A: Generally speaking, the delivery time for conventional products is 2-3 weeks, and special customized products may take longer. The specific delivery time will be confirmed based on the order volume and product type.



Q: Are your products customizable? What are the customization options?
A: We provide OEM and ODM services and can customize products according to customer needs. The optional customization range includes model, specification, brand logo, packaging, etc. You can communicate with our sales team to confirm the details.



Q: What is the minimum order quantity (MOQ)?
A: For standard products, the minimum order quantity is generally 1 unit, depending on the product type. The MOQ of customized products will be different.



Q: What payment methods do you accept?
A: We accept a variety of payment methods, including telegraphic transfer (T/T), letter of credit (L/C), etc. The specific payment method can be negotiated according to customer needs.



Q: Do you have logistics services? How long does it take to ship?
A: Yes, we can arrange logistics methods such as sea transportation, air transportation and express delivery. The shipping time depends on the destination and the mode of transportation, usually ranging from 5-20 days.



Q: What after-sales service does the product have?
A: We provide comprehensive after-sales service, including technical support, on-site guidance, video training, etc. Repair support is also available outside the warranty period, and a reasonable service fee may be charged.



Q: How can I obtain detailed specifications and installation manuals for the product?
A: You can obtain the product's technical specification sheet and installation manual via email or online communication. Our technical support team can also answer any specific installation questions.
