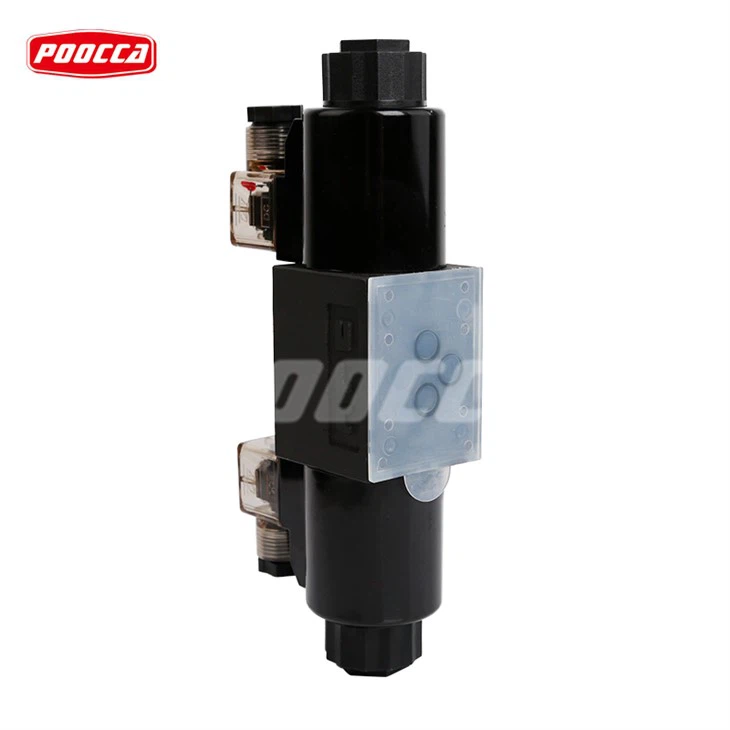

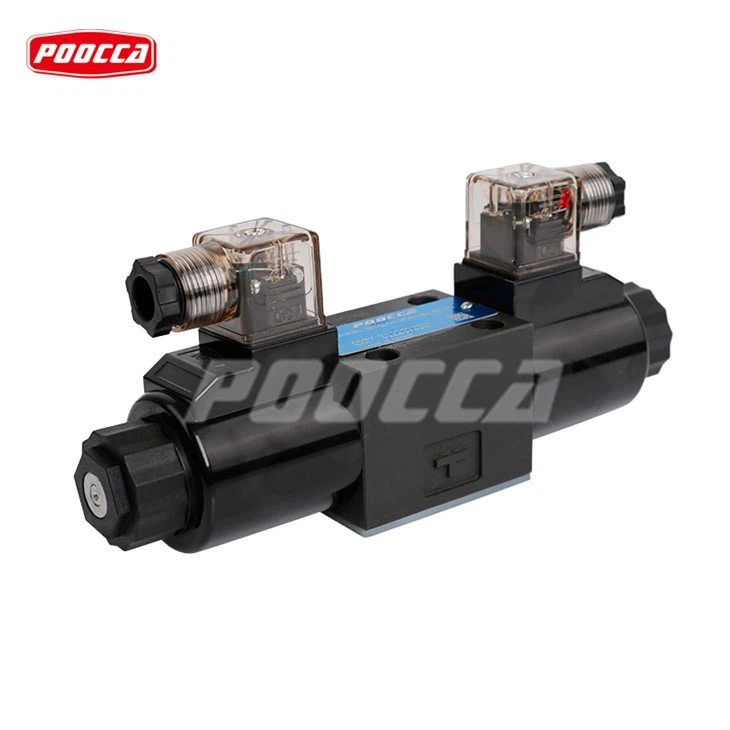

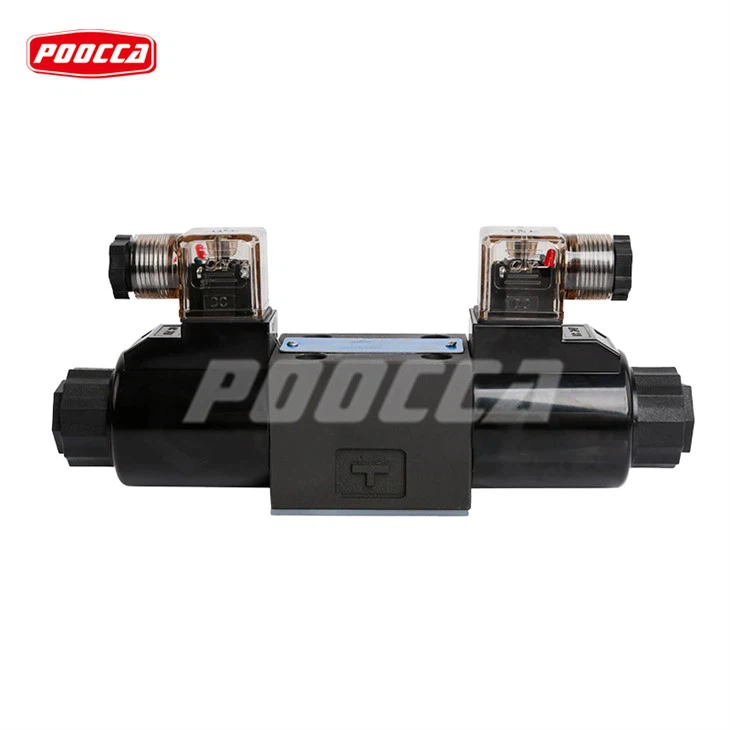

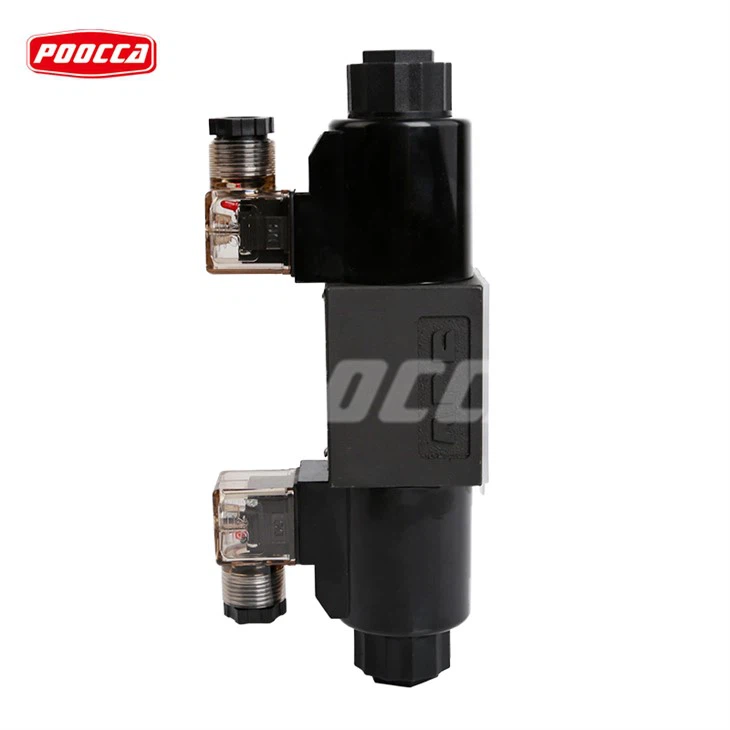

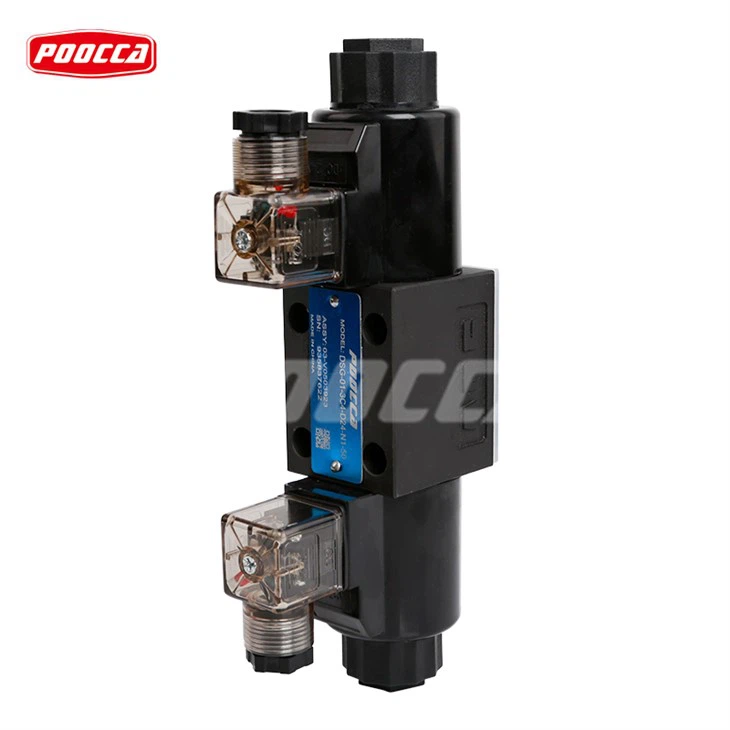

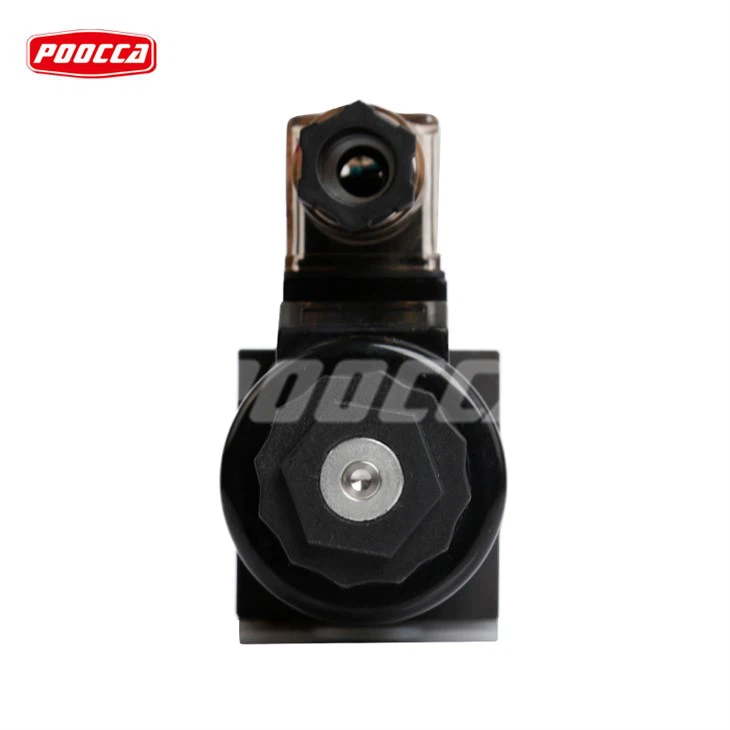

Yuken DSG Operated Directional Valves DSG-01-3C4-D24-N1-50

Yuken1/8 Solenoid Operated Directional Valves DSG DSG-01-3C4-D24-N1-50

Parameter

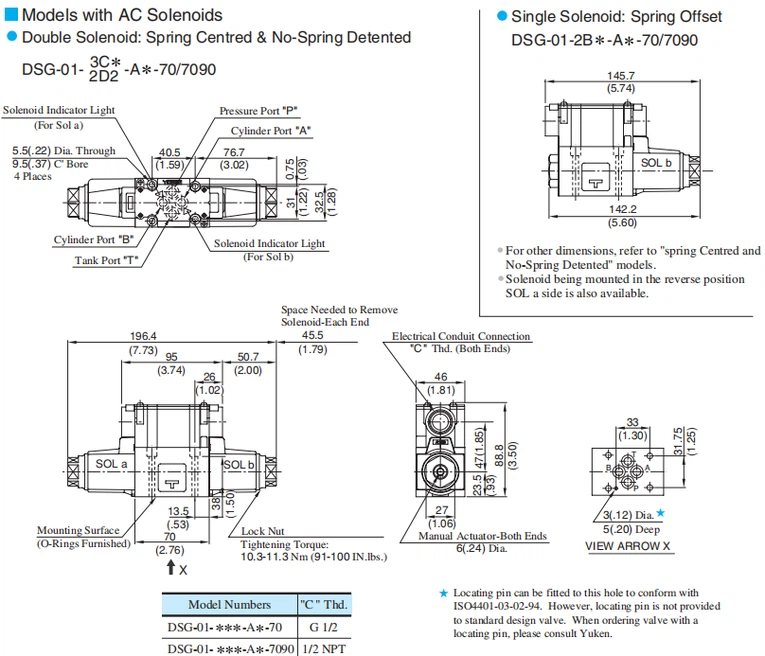

DSG Hydraulic Valve Dimension

Feature

1/8 Solenoid directional valve DSG-01 series is a solenoid directional valve with high pressure, high flow and low pressure drop. Its characteristics can be achieved by adopting a powerful wet solenoid valve and reasonable flow channel design.
● High Pressure & High Flow Rate
In comparison to our existing lines, both the pressure and flow of these valves are much increased.
● Max. Operating Pressure: approx. 10 % increased [31.5→35 MPa (4570 →5080 PSI)]
● Max. T-Line Back Pressure: approx. 30 % increased [16→21 MPa (2320 →3050 PSI)]
● Max. Flow Rate: approx. 60 % increased [63→ 100 L/min (16.64 →26.42 U.S.GPM)]
● Low Pressure Drop
The pressure drop of these valves is reduced by 10 % from 1.0 to 0.9 MPa (145 to 131 PSI), in comparison to our existing lines*; the valves effectively reduce the energy consumption of the unit.
{* At Flow Rate: 60 L/min (15.9 U.S.GPM),Spool Type: 3C2 (P→A)}
● Compact & Small Mass
Despite of high pressure, high flow and low pressure drop, these valve bodies are compact and lightweight with DC double solenoids; the overall length and mass are reduced from 210 to 205 mm (8.26 to 8.07 inch) and from 2.2 to 1.85 kg (4.85 to 4.08 lbs),respectively.
● Shockless type available
In addition to the standard valves for high pressure and high flow, a shockless type capable of minimizing noise and vibration in piping during spool changeover is also available.
● Stable Operation
Due to the powerful magnetic and spring force of the solenoids, these valves exhibit a high tolerance to contaminants and especially stable operation.
● IP65-equivalent high dust- and water-proof
These valves demonstrate excellent dust- and water-proof characteristics, in compliance with I. E. C. Pub. 529. IP65 and JIS C 0920 IP65 (dust- and jet-proof type).
● Usable in products of various standards
These standard valves are CE certified for installation in equipment overseas. UL/CSA certified products are also available.
