Imagine this: you have a hydraulic pump in a machine-a jack, a press, or heavy equipment. You've always thought it only works one way, pushing fluid from A to B. But suddenly you wonder: "Could I run it in reverse?"
That question is more than academic. In certain systems-say, for energy recovery, regenerative braking, or reverse motion-you might want to reverse flow or rotation. But doing so isn't always safe or even possible.
In this article, we'll dive into:
What a hydraulic pump is and how it works
What "running in reverse" really means
Which pump types may allow reverse operation
Why reversing a pump can be risky
How engineers sometimes turn a pump into a turbine
Practical tips for identifying reversible pumps, protecting them, and avoiding disasters
By the end, you'll be able to read a pump's spec sheet and make an educated call on whether reverse is feasible-or whether you're courting trouble. Think of this as a friendly but no-nonsense guide into the hidden world of hydraulic reversals.
Hydraulic Pump Types & How They Work
Hydraulic pumps come in many flavors, but if you boil it down, most fall into a few broad families. Each has its own "personality strengths and quirks." Understanding these will help you see which ones might tolerate-or absolutely reject-being run in reverse.

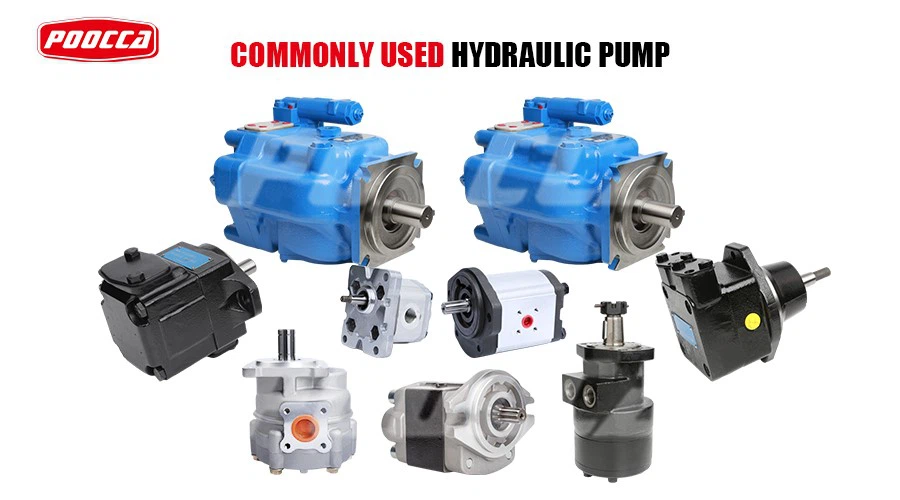

The Big Three: Gear, Vane & Piston Pumps
These three are the most commonly used in hydraulic systems.
| Type | How It Works (Simplified) | Strengths / Typical Uses |
|---|---|---|
| Gear Pump | Two meshing gears rotate. As they unmesh on the inlet side, they create suction and draw fluid in; as they re-mesh on the outlet side, they push fluid out. | Rugged, simple, cost-effective. Good for moderate pressures and consistent flow. |
| Vane Pump | A rotor has sliding vanes that extend to maintain contact with the housing. As the rotor spins, the vanes divide the chamber into pockets that expand (intake) and contract (discharge). | Smooth flow, lower noise, medium pressures. Often used where pulsation must be low. |
| Piston Pump | Several pistons (either arranged axially or radially) reciprocate inside cylinders. The pistons draw in fluid when retracting, then push it out when advancing. | Can reach high pressures, good efficiency, variable displacement options. Used in heavy machinery, presses, etc. |
Beyond these, there are sometimes screw pumps or progressing cavity pumps that show up in niche contexts (e.g. for viscous fluids or continuous flow settings).
Fixed vs Variable Displacement
Another important dimension is whether the pump has a fixed displacement or a variable displacement design.
Fixed displacement: For every full rotation, the pump moves the same volume of fluid. You can't change that volume on the fly-if you crank the speed, you get more flow.
Variable displacement: The internal geometry (angle, swashplate, vane eccentricity, etc.) can adjust how much fluid is transferred per revolution. This gives flexibility for varying demands and is more energy efficient.
One interesting note: some variable displacement pistons (or vane types) have designs that allow "over-center" or reverse flow under certain conditions. I'll come back to that later.
What "Running in Reverse" Means in a Hydraulic Context
When you read "running a pump in reverse," it can mean more than one thing. Let's clarify the subtleties so you don't get lost in jargon:
Reversing the Shaft vs Reversing the Flow
Reverse the mechanical rotation - spinning the pump the opposite direction (clockwise → counterclockwise or vice versa).
Reverse the fluid flow - making what was the outlet become the inlet, and vice versa.
In many cases, these two are linked: flipping the shaft direction forces the fluid to flow "backwards" through the internal passages. But in some designs (especially with symmetrical internals), you might be able to swap the ports and still rotate in original direction.
So: "reverse operation" could mean rotation reversal, flow reversal, or both.
Pump vs Motor vs Turbine Role
A hydraulic pump is normally a force generator - you drive it, it pushes fluid against pressure. If you reverse things, the pump may act more like a motor or even a turbine: fluid pushes the internals and the pump (or connected shaft) does work.
In other words:
Forward: you supply mechanical energy → pump pushes fluid
Reverse: potentially, fluid supplies energy → shaft rotates / does work
The classic "pump as turbine (PAT)" concept is based on exactly this idea.
Which Pumps Can Be Run or Engineered to Run in Reverse
Gear Pumps (Especially Reversible / Bidirectional Versions)
Why gear pumps are top candidates
Gear pumps are relatively simple internally, with gears meshing in a chamber.
Some manufacturers make reversible gear pumps (also called bidirectional) that are built to handle rotation in either direction without internal damage. For example, Vivoil offers external-gear reversible pumps that can run CW or CCW without modification.
In other cases, a standard gear pump can be modified (e.g. by repositioning relief valves or port orientation) to run in reverse. Viking Pump notes that many external/ internal gear pumps are "generally operable in both directions," assuming design features permit it, but you must check for direction-sensitive parts like relief valves or seal circulation plans.
Things to watch out for in gear pumps
Relief valves - Many gear pumps have built-in or attached relief valves that are direction-sensitive. You might need to flip or redesign the relief valve orientation.
Seal / flush circuits - Some pumps route fluid for seal lubrication assuming forward flow. When reversed, the flush or "Plan" lines will reverse too, which might not be acceptable in the original design.
Lubrication paths & port symmetry - For a pump to truly reverse, inlet and outlet ports need to be symmetric or interchangeable, and internal oil passages (e.g. to bearings or bushings) must tolerate reverse flow. Viking Pump
Gear pumps often offer the best chance of being reversed (or designed as reversible) in a hydraulic system.
Vane Pumps & Some Piston Pumps (Variable Displacement Types)
Vane pumps are more finicky, because their internal vanes are often mechanically biased or slotted in a way that favors one direction of flow.
Some vane designs can be made reversible, but you'll need to watch out for features like one-way vanes, internal valves, and geometry that only works for one direction.
Variable Displacement / Swashplate Piston Pumps
An interesting feature: many variable displacement pumps (especially axial piston types) are inherently reversible or can be used as motors. According to the Wikipedia summary, many variable displacement pumps "are reversible, meaning they can act as a hydraulic motor and convert fluid energy into mechanical energy."
However, being reversible in the sense of motor ↔ pump is different from being able to swap inlet/outlet while preserving intended functions. Reverse operation may still stress seals or check components.
Other Pump Types with Some Reversibility Potential
Progressing Cavity Pumps / Screw Pumps
Some screw or progressive cavity designs are more tolerant of reversed flow, though seals (especially on the suction side) may suffer because they were sized for lower pressures. Viking notes that screw pumps can "often be run in reverse, but doing so causes the seal, normally on the low-pressure suction end, to see the pump's full discharge pressure," which can cause rapid seal failure.
Lobe Pumps
Lobe pumps are positive displacement rotary pumps where lobes (rather than meshing gears) rotate to move fluid. They can sometimes support reversible flow, because their geometry is more neutral. Wikipedia notes that lobe pumps "offer continuous and intermittent reversible flows" in some designs.
Limitations, Risks & What Happens If You Reverse a Non-Reversible Pump
So you thought, "Let me just flip it and see what happens" - but before you do, let's talk about what can go wrong. Reversing a pump that isn't designed for it is like taking a violin bow and trying to play with the back side - maybe something will make noise, but probably not the right note.
Here are the key risks, failure modes, and practical consequences:
Seal Damage, Leakage & Loss of Pressure
Seals and O-rings are often selected and installed with a pressure gradient in mind: forward direction is high pressure on one side of the seal, lower on the other. If you reverse that gradient, the sealing material may deform or blow out.
You may get internal leakage (fluid slipping past clearances) at much higher rates in reverse, so the pump might not hold pressure or deliver meaningful flow.
Relief or check valves internal to the pump or system might block flow entirely in reverse, or open erroneously, making the system uncontrollable.
Lubrication Failures & Bearing Starvation
Many pumps rely on hydraulic fluid flow in a set direction to feed oil to bearings, journal surfaces, or sliding components. If you reverse that flow, those lubrication paths may dry up, leading to friction, wear, heat, and eventual seizure.
In anecdotal accounts, a hydraulic vane pump reversed caused oil starvation that led to catastrophic failure. One user posted:
"Oil starvation would be the most likely cause of damage as the pump wouldn't be pulling oil from the reservoir."
Cavitation, Flow Instability & Pressure Surges
When flow is reversed, cavitation (formation of vapor bubbles) is more likely, especially if the pump is trying to suck fluid through passages never intended for that.
Flow instabilities or internal turbulence may spike, degrading performance and causing oscillations.
Sudden reversals or rapid direction changes can lead to hydraulic shock (fluid hammer), sending pressure pulses through the system that damage piping, seals, or components.
Overstress, Vibration & Mechanical Failures
Because the internal clearances and geometry are optimized for forward direction and load flows, reverse operation may subject the pump to unbalanced forces, vibrations, or misaligned stresses that fatigue parts.
Components like vanes, pistons, or rotors may experience shock loading or reversed thrust loads they weren't designed for.
In extreme cases, the pump can crack, warp, or catastrophically fail.
Real-World Examples & Warnings
Forums and technical discussion boards contain stories: e.g. a vane pump run backward "wedged a vane between rotor and cam ring," splitting parts.
Some machines have inadvertently reversed hydraulic pump rotation during engine shutdowns and failure modes; although not always immediately damaging, they can strain coupling, pins, or hydraulic circuits.
Gear pump manufacturers warn that reversing a gear pump can amplify wear, noise, leakage, and reduce life expectancy.
How to Determine If a Given Pump Can Be Reversed
So you have a hydraulic pump in front of you (or on paper), and you want to know: Can I safely run it in reverse? Here's a checklist and guide to help you decide.
Start with the Nameplate & Documentation
Read the nameplate / data plate - this often includes model number, direction (CW / CCW / Bi-rotational), maximum pressure, displacement, etc. Many reversible pumps include "R," "bi-rotational," or "rev" in their model codes.
Check the manufacturer's catalog or datasheet - they often explicitly state whether the pump is reversible (or "bi-directional"). For example, the AP05 gear pump series has a "APR" version which denotes reversible rotation.
Look up part / model codes online - many manufacturers publish manuals that list which variants support reversal.
Search for "reversible / bi-rotational" in specifications - e.g. Vivoil sells standard reversible external gear pumps that can rotate clockwise or counterclockwise.
If the documentation explicitly labels the pump as "reversible," "bi-directional," or equivalent, that's your strongest green light (but still verify internal details).
Inspect Port Geometry & Symmetry
Check port sizes: On a reversible ("bi-rotational") pump, inlet and outlet ports are often identical in size (so you can swap them). Muncie's pump literature highlights that bi-rotational pumps are constructed so both ports are the same size.
Check port layout: Are the ports positioned so that swapping lines would make sense? If swapping the inlet and outlet would require severe plumbing changes, that may be a clue the design was never intended for reversal.
Look for internal check or non-return features: Some pumps embed one-way valves or internal check valves that prevent flow in the opposite direction. Those are red flags.
Examine Internal Design / Features
Ask whether the pump has direction-sensitive relief or safety valves built in. If a relief valve assumes forward flow, reverse operation might bypass or break safety logic.
Look for lubrication / flush channels that are directional. If internal oiling passages depend on forward flow, reversing might starve bearings or seals.
Check whether there are gears, vanes, or pistons biased for one direction (some designs use vanes shaped or loaded for a preferred rotation).
Consult cross-sectional diagrams (from the manual) to see if passages are symmetric or directional.
Use the "Test in Controlled Conditions" Approach (If Unclear)
When the documentation or visual inspection doesn't conclusively say "yes" or "no," you might attempt a controlled test. But be very cautious:
Mount the pump off-line (no critical system attached)
Use a low pressure / low speed drive, slowly increasing in steps
Monitor leakage, temperature, vibrations, noise
Use external relief valves / bypass lines to prevent damage
If anything sounds off (seals weeping, vibration, loss of flow), stop immediately
Safety & Protection Strategies for Reversible or Reverse-Capable Operation
If you are going to experiment with reversing a hydraulic pump (or even just assessing its ability), you absolutely want to build in safety nets. Think of them like seat belts, airbags, and bumpers-things you hope never to use but that can save you from disaster. Below are strategies and precautions to protect your pump, system, and people.
Use Relief / Overpressure Protection
Primary relief valve: Always have a pressure relief valve in the discharge line (as close to the pump as feasible). It ensures that if pressure tries to exceed a safe threshold, excess fluid is diverted or dumped before something blows.
Correct valve type: Use a direct-acting relief for simple systems, but for higher flow or more stable control, a pilot-operated relief valve helps reduce pressure spikes and improve control.
Set properly: The relief valve should be adjusted so it opens just above your system's normal maximum pressure, not too low (causing waste) nor too high (risking damage).
Minimize backpressure: The return line from the relief valve should avoid restrictive plumbing, so the valve can vent freely.
Monitor & Detect Early Warning Signs
Pressure monitoring: Continuously track upstream and downstream pressures. Sudden spikes or abnormal oscillations may indicate faults or adverse reverse effects.
Temperature: If parts heat up unusually (bearings, seals, fluid), that may signal internal friction or oil starvation.
Vibration / noise: Reverse operation can cause new unbalanced forces or interactions. Strange whines, knocking, or vibration should be alarms to stop.
Leakage: Even little seepage from seals or joints may grow rapidly if running reversed. Be vigilant.
Install Backflow & Check Protection Devices
Check valves or non-return valves: In appropriate places, a check valve can prevent unwanted flow reversal into parts of the system not meant to see reverse pressure.
Hydraulic fuses / velocity fuses: These act like "circuit breakers" in fluid systems-if flow exceeds a threshold (like in a burst hose), they close automatically.
Controlled Startup & Shutdown Protocols
Ramp slowly: Don't slam into high speed or high pressure. Accelerate in stages so you can spot issues early.
Pre-purge / bleed lines: Remove air pockets or trapped vapor that could cause cavitation or pressure spikes.
Switch direction only when safe: If reversing direction (e.g. motor reverse), ensure the pump/fluid circuit is cleared, pressures equalized, and protections active.
Emergency shutdown: Have a quick way to stop the pump or isolate it (valves, motor cut-off) if something goes wrong.
Physical & Operational Safeguards
Pressure-rated components: Make sure hoses, fittings, valves, and seals are rated for worst-case pressures, including potential reverse transients.
Use protective guards: Rotating shafts, couplings, and flanges should be guarded to prevent injury from unexpected motion.
Relieve system pressure before disassembly: Before working on the pump or adjacent components, always bleed the system to zero pressure to avoid sudden ejections or fluid bursts.
Routine inspections: Check hoses, seals, fittings regularly-any fatigue or small leaks should be addressed immediately to prevent cascade failures.
Maintenance, Durability & Long-Term Considerations
Even a reversible or reverse-capable hydraulic pump is only as good as how well you care for it. Over time, stress, wear, contamination, and small missteps can shorten its life dramatically. This section gives you real tips and insights to make your pump last longer-whether you ever run it backward or not.
Keep the Fluid Clean & Healthy
Hydraulic fluid is the lifeblood of the system-if it's contaminated or degraded, the pump will suffer.
Filtration & monitoring: Use good filters and monitor their status (many systems have filter differential pressure indicators). Replace or service filters before they clog.
Watch for contamination: Dirt, metal particles, water, or air bubbles (aeration) can damage pump internals, erode surfaces, or interfere with seals. blog.
Maintain correct fluid level: Low fluid can cause cavitation or starvation; too much or overfill can cause pressure or foaming issues.
Use the right fluid type: Stick to the manufacturer's recommended viscosity, additive package, and fluid grade. Using a fluid outside spec can accelerate wear, degrade seals, or change lubrication behavior.
Temperature control: Excess temperatures accelerate fluid breakdown, reduce viscosity, and speed wear. Use heat exchangers or cooling methods if the pump operates in hot conditions.
Seal & Bearing Care
The seals and bearings are among the most vulnerable internal elements in any pump-especially if you ever experiment with reverse operation.
Seal inspection / replacement: Regularly check oil seals, O-rings, etc., for wear, cracks, or hardened lips. DMS Seals emphasizes seal compatibility, cleanliness, and timely replacement to prevent leaks.
Proper installation & cleanliness: When replacing seals, ensure a clean environment and the correct orientation. Contaminants or rough handling can damage the sealing lip immediately.
Bearing lubrication & condition: The bearings need steady, correct lubrication (often via fluid paths within the pump). Monitor for signs of bearing overheating, noise, or vibration. Use high-quality bearings matched to load & speed.
Axial / radial loads: Avoid overloading the shaft sideways or pushing it into axial stress beyond design limits, as that shortens bearing life.
Scheduled Inspections & Preventative Actions
Regular checkups: Build a maintenance calendar. Weekly, monthly, quarterly, yearly checks help catch small issues before they become big ones.
Visual inspections: Look for signs of leaks, corrosion, cracks, unusual coloration, or vibration marks.
Performance checks: Monitor output flow, pressure, efficiency over time. If performance drops, it might signal internal clearance growth or wear.
Replace wear parts early: O-rings, soft seals, gaskets, bushings-these are relatively inexpensive parts. Replacing them before they fail prevents collateral damage.
Record keeping: Maintain logs of usage hours, maintenance events, part replacements, fluid changes. Patterns emerge over time that help you predict issues.
Recognizing End-of-Life & When to Replace
If your pump develops persistent internal leakage, can't build pressure, or shows catastrophic failures in seals or bearings despite maintenance, it may have reached end-of-life.
If repairing it costs nearly as much as a replacement (due to machining, new components, labor), replacement might be wiser.
Always follow the manufacturer's recommended life cycles or guidelines-if those exist for your pump model.
Conclusion & Key Takeaways
You've now journeyed through:
What it means to "run a hydraulic pump in reverse"
The different pump types and which are more amenable to reversal
The limitations, risks, and failure modes of reversing non-reversible pumps
Diagnostic steps to test if a pump can be reversed
Protection, safety and maintenance strategies
Real-world examples - both successes and failures
Key Takeaways
Only pumps with bi-directional or reversible design features (symmetric ports, no directional checks, robust seals) should be run in reverse.
Reversing a pump not intended for it often causes leakage, seal damage, lubrication starvation, vibration, and failure.
Always use relief valves, safe startup protocols, monitoring, and test in a non-critical configuration first.
Even with proper design, reverse operation often has less efficiency and more internal leakage - treat it as a compromise.
